Joint LA7T04-06A
The air pipe connector is a crucial pneumatic component that connects the end of the industrial robot arm with the end effector. It is a specially designed and optimized pneumatic connector specifically for the robot EOAT application scenarios. They are responsible for transmitting the main air source from the internal or external pipelines of the robot arm to the end tool, and are the "last link" of the robot pneumatic system.
Product Details

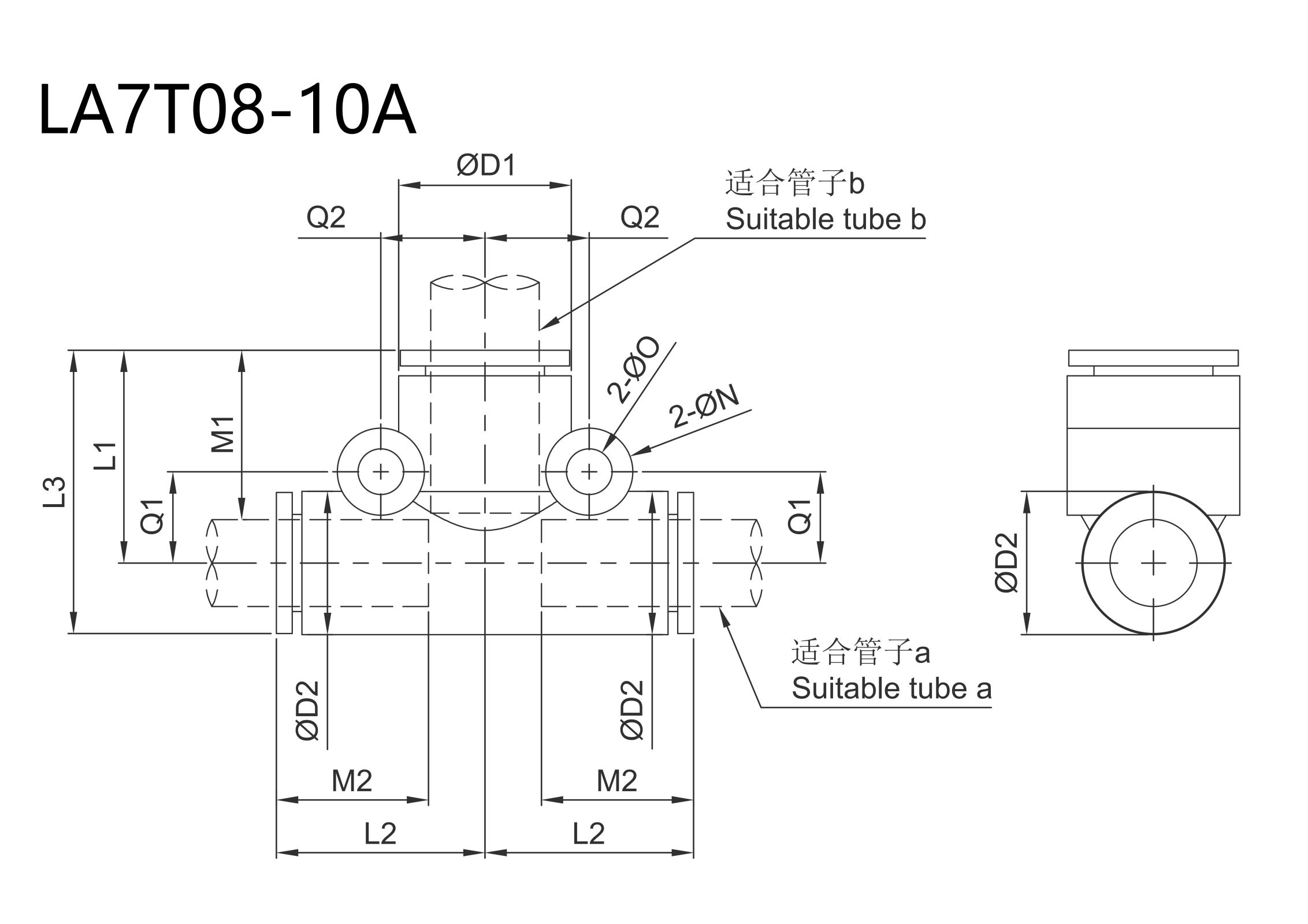

| Tube O.D.mm | Model | ØD1*(mm) | ØD2(mm) | L1(mm) | L2(mm) | L3(mm) | M1(mm) | M2(mm) | Q1(mm) | Q2(mm) | Q3(mm) | ØN(mm) | Effective cross-sectional area mm | Minimum Hole Diameter(mm) | Weight | ||
| a | b | Nylon | Polyurethane | ||||||||||||||
| Ø4 | Ø6 |
0
|
10.4 | 8.2 | 15.3 | 16.3 | 19.4 | 13.3 | 13.3 | 5.7 | 6.8 | 6 | 3.2 | 7.1 | 6.6 | 3 | 3.3g |
| Ø6 | Ø8 |
0
|
13.2 | 10.4 | 17.2 | 17.2 | 22.4 | 14.2 | 13.3 | 7.3 | 8.4 | 8 | 4.2 | 16.4 | 16.4 | 4.5 | 5.3g |
| Ø8 | Ø10 |
0
|
15.9 | 13.2 | 19.6 | 19.2 | 26.2 | 15.6 | 14.2 | 8.4 | 9.6 | 8 | 4.2 | 36 | 27.2 | 6 | 8.3g |
| Ø10 | Ø12 |
0
|
18.5 | 15.9 | 22 | 21.6 | 30 | 17 | 15.6 | 9.3 | 10.7 | 8 | 4.2 | 56 | 44.5 | 7.5 | 12.2g |
| ØD represents the maximum diameter. | |||||||||||||||||
